Description

CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 3,500 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 1" shank diameter, a 2-1/8" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications

Details

  • Pallet Qty - XA: 864.000
  • Color: silver
  • Finish: chrome-plated
  • Shank Length: 2 1/8 in
  • Shank Diameter: 1
  • WARNING CA Proposition 65: no
  • Warranty: limited lifetime warranty (one-year finish, one-year parts)
  • Side Application Type Description - XA: blank
  • Material - XA: forged steel
  • Sales Family Code - XA: acces
  • Ball Diameter: 1-7/8 in
  • Ball Shank Diameter: 1.000 in.
  • Gross Load: 3500 lbs.
  • Torque Capacity: 250 ft/lbs.
  • Retail Height - XA: 2.000
  • Rate Class - XA: 60.0
  • Item Class - XA: obs
  • Shipping Weight - XA: 2.210
  • Parcel Allowed - XA: yes
  • Item Width - XA: 0.000
  • Retail Length - XA: 5.000
  • Box Width in Inches - XA: 4
  • Box Length in Inches - XA: 7
  • Sales Family Description - XA: accessories
  • Sales Group Description - XA: trailer balls
  • Shank Rise: 0 in
  • Torque: 250 ft lb
  • Master Case ITF14: 60612314102008
  • Master Case Qty - XA: 12
  • Master Case Weight Lbs - XA: 27.520
  • Master Case Width Inches - XA: 7.100
  • Pallet Case Per - XA: 80
  • Pallet Case Per Layer - XA: 20
  • Pallet Total Weight Per - XA: 2256.600
  • Prop 65 Material - XA: unknown
  • Truckload Cases Qty - XA: 1280
  • Truckload Pallets Qty - XA: 16
  • Truckload Units Qty - XA: 15360
  • Truckload Weight - XA: 36105
  • Master Case Height Inches - XA: 5.300
  • Container Load Type - XA: pallets
  • Container Type - XA: 20gp

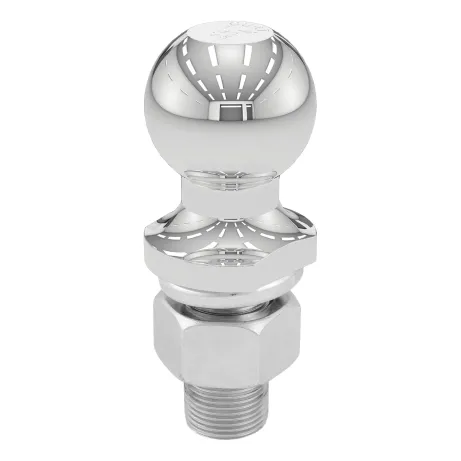

1-7/8" Trailer Ball (1" x 2-1/8" Shank, 3,500 lbs., Chrome)

By CURT -

#CUR40002

$15.99
