Description

The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 7,500 lbs. It features a 1" shank diameter, a 2-1/8" shank length, 0" of rise and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications

Details

  • Pallet Qty - XA: 720.000
  • Color: silver
  • Finish: chrome-plated
  • Shank Length: 2 1/8 in
  • Shank Diameter: 1
  • WARNING CA Proposition 65: no
  • Warranty: limited lifetime warranty (one-year finish, one-year parts)
  • Side Application Type Description - XA: blank
  • Material - XA: forged steel
  • Sales Family Code - XA: acces
  • Ball Diameter: 2-5/16 in
  • Ball Shank Diameter: 1.000 in.
  • Gross Load: 7500 lbs.
  • Torque Capacity: 250 ft/lbs.
  • Rate Class - XA: 60.0
  • Item Class - XA: obs
  • Shipping Weight - XA: 3.070
  • Parcel Allowed - XA: yes
  • Retail Length - XA: 6.000
  • Box Width in Inches - XA: 4
  • Class ID: 0
  • Box Length in Inches - XA: 7
  • Box Height in Inches - XA: 2
  • Sales Family Description - XA: accessories
  • Sales Group Description - XA: trailer balls
  • Shank Rise: 0 in
  • Torque: 250 ft lb
  • Master Case ITF14: 60612314105009
  • Master Case Length Inches - XA: 10.000
  • Master Case Qty - XA: 12
  • Master Case Weight Lbs - XA: 38.000
  • Master Case Width Inches - XA: 7.100
  • Pallet Case Per Layer - XA: 20
  • Pallet Layer of Cases - XA: 3
  • Pallet Total Weight Per - XA: 2335.000
  • Prop 65 Material - XA: unknown
  • Truckload Cases Qty - XA: 960
  • Truckload Pallets Qty - XA: 16
  • Truckload Volume Cubic Feet - XA: 79.00000
  • Truckload Weight - XA: 37108
  • Container Cases Qty - XA: 900
  • Container Pallet Qty - XA: 15
  • Container Unit Qty - XA: 10800
  • Container Volume Cubic Feet - XA: 400.00000
  • Container Weight Lbs - XA: 35025
  • Master Case Height Inches - XA: 6.300
  • Container Load Type - XA: pallets
  • Container Type - XA: 20gp
  • Truckload Dom Pickup Location - XA: eau claire, wi

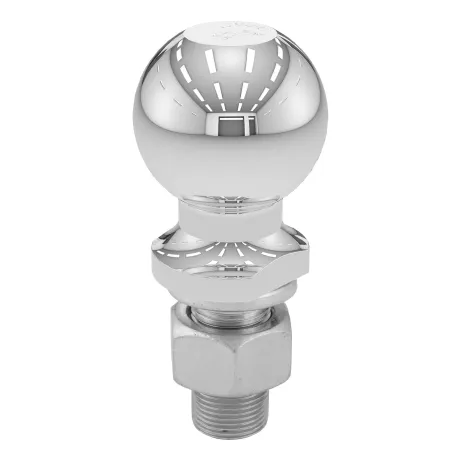

2-5/16" Trailer Ball (1" x 2-1/8" Shank, 7,500 lbs., Chrome)

By CURT -

#CUR40005

$18.99
